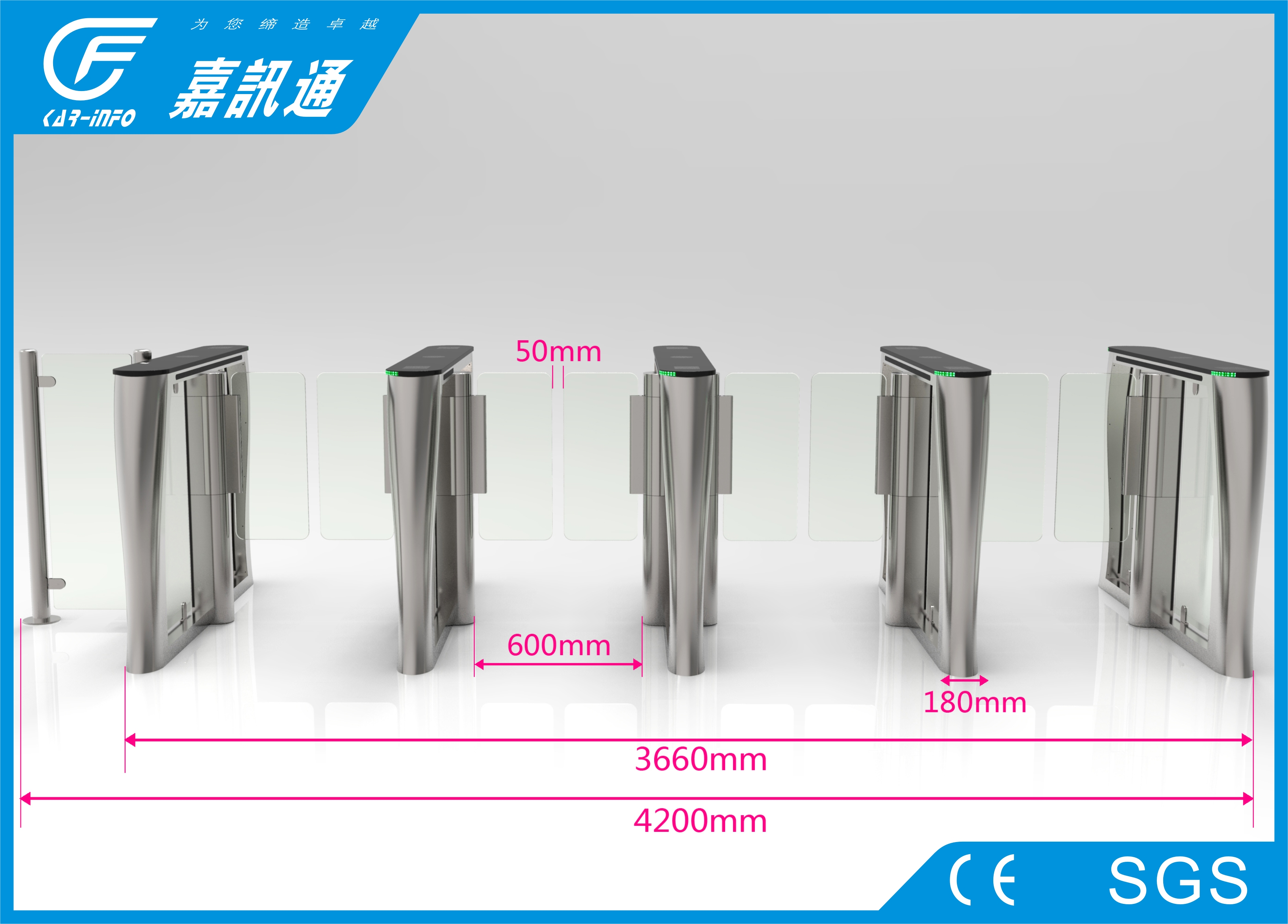

retractable swing barrier High speed gate access control system
Special Functions:
1. Fire-fighting linkage: the turnstile will open automatically and enter the emergency mode when the equipment receives the fire-fighting signal in the case of constant power supply.
2. Running mode:A - normally closed mode for pedestrian passage; B - normally open mode for pedestrian passage; and C - bicycle and wheelchair passage mode.
3. Secondary opening: the turnstile will close when any pedestrians in the reverse direction intruded after swiping card and will reopen for pedestrians' passage by re-enabling the card swiping function after intruders get out of the channel.
4.Multiple anti-pinch:it consists of infrared anti-pinch and mechanical anti-pinch, and will block the infrared for opening twice during closing.
5.Passage indication:after swiping cards for products of luxury models, the long arrow on top cover will flash for reminding, and this is novel and unique.
6.Fault self-diagnosis:refers to the real fault self-diagnosis, that is, the equipment will give alarms, display fault code and identify fault location to facilitate commissioning and maintenance when it fails to run normally
Parameters :
| Technical Parameters |
| power and voltage | AC 220V / AC 85 ~ 230V | operation voltage | DC 24V |
| machinery | MTHT™ | driving motor | DC brushless motor |
| mechanism | Lossless mechanism |
| communication | RS485 / RS232 | rated power | 90W |
| interface |
| passing speed | 30 ~ 45 people / min | working | Indoors |
| environment |
| operation | - 15 ~ 60 Centigrade | humidity | 0 ~ 95% |
| temperature | temperature | (non-condensation) |
| control input/output | 6 channels relay control output/ 4-channel dry contact signal input |
