Semi - Auto One Way Full Height Turnstile Channel Width 530mm DC Motor For Factroy

Name: Semi Auto One Way Full Height Turnstile Channel Width 530mm DC Motor For Factroy
Brand: Jiaxuntong
Price: 1 USD

Brand Name : Jiaxuntong

Model Number : BDQG-120

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 500set/ month

Packaging Details : wooden package

Connection : TCP/IP standard or RS485

Extended function : sound light ,alarm

Passing Speed : 40persons/min

Product Name : Full Height Turnstile

Channel length : 550MM

Contact Now

Semi - Auto One Way Full Height Turnstile Channel Width 530mm DC Motor For Factroy

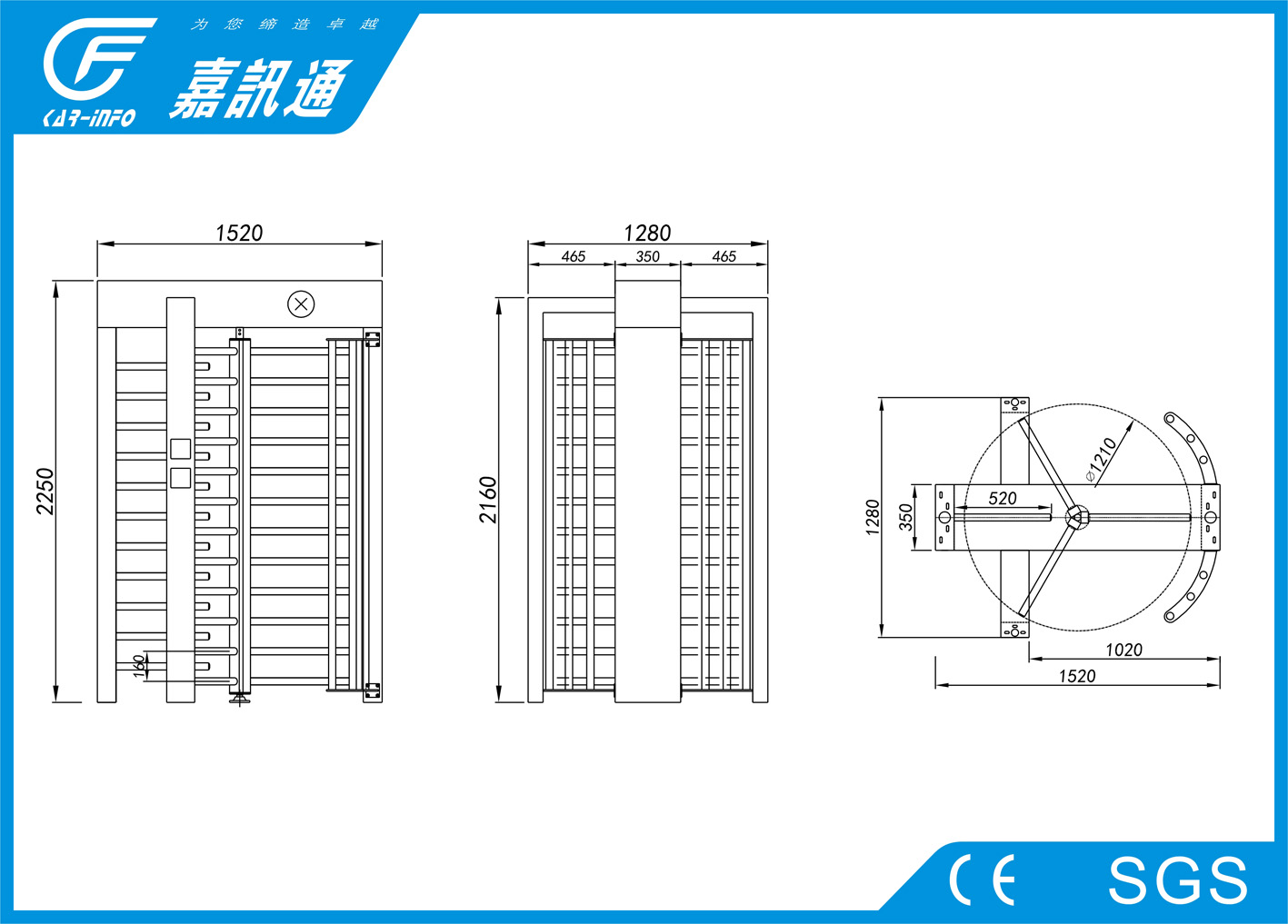

Full Height Technical:

material of casing	standard 304ss
structure	frame structure with 304SS tube
size of casing	163015002310mm
channel width	530mm
Weight	230Kg
angle of arm roatation	120 degree
single direction or bi-direction	both
drive motor	DC motor

Conditions and the installation

Before installation, if you need unlock the turnstile,please refer to Figure 3-1.

Step 1: Unlock the frame
Step 2: After confirming the position of the mounting hole, drill down the expansion screw; after the gates are respectively moved to the corresponding installation hole positions, drill down the expansion screws; move the gates to the corresponding one by one alignment anchor bolts and tighten the nut;

Note: 6 pcs M10 or M12expansion screws are required for each gate,the length of the expansion screw should be not less than 120mm.

3.2 Power connection
When the device before shipped, the basic electrical connection has been completed and the user only needs to connect AC power AC220 for the entire system power supply.
