Direction Adjustable Waist Height Turnstile , Swing Barrier Gate Brcush DC Motor

Brand Name : Jiaxuntong

Model Number : Cf238FLG-Bo

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 500set/ month

Packaging Details : wooden package

product name : Waist Height Turnstile

Extended function : sound light ,alarm

SS thickness : 1.5mm

Passing Speed : 40persons/min

Driving Motor : Brcush DC motor

Fire Safty Emergency : yes

Contact Now

Automatic Rfid Card Reader Security Turnstile Gate Fingerprints card reader

Features:
1. Door will keep opened automatically while power cut off.
2. Direction of through is adjustable, one-way, bi-direction.
3. Use RJ45 port for synchronization between turnstiles, simplify installation setting.
4. LED direction indicator
5. Anti-pinch function
6. Anti-tail, prevent people follow pass without verified
7. Prevent wrong direction pass, go through wrong direction will be alarm by beep
8. RFID access controller for standard, fingerprint reader, facial identify reader, barcode reader, consume system optional.
9. Combine IR detector, support people counting, prevent follower, wrong way alarm function.
10. Option temperature controller, support machine working fine in cold weather.
11. Option bluetooth remote controller, support remote open.
12. Option the crashproof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash it

Parameter :
No Name Prameter
1 Swing Barrier Composition Chassis shell, swing arm, DC Motor, turnstile controller, turnstile movement , LED indicator,power supply, etc
2 Swing Turnstile Chassis materials Turnstile Chassis shell made of high quality stainless steel 304 conforming to the National Standard
3 Turnstile dimension All turnstiles size can be customized,standard size in the picture above
4 Swing Gate Channel width All turnstiles channel width can be customized,standard normal width:600mm.Handicap width:900mm
5 Service environment Temperature: -10°C~70°C; humidity: RH≤90% without condensation
6 Environment indoor/outdoor (suggest with shed)
7 Power input AC 110v / 220v , 50/60HZInput interface
8

Input interface

 Dry contact signal, 12V level signal or DC12V pulse signal

Direction Adjustable Waist Height Turnstile , Swing Barrier Gate Brcush DC Motor


Product Tags:

turnstile barrier gate



pedestrian swing gate


Wholesale Direction Adjustable Waist Height Turnstile , Swing Barrier Gate Brcush DC Motor from china suppliers

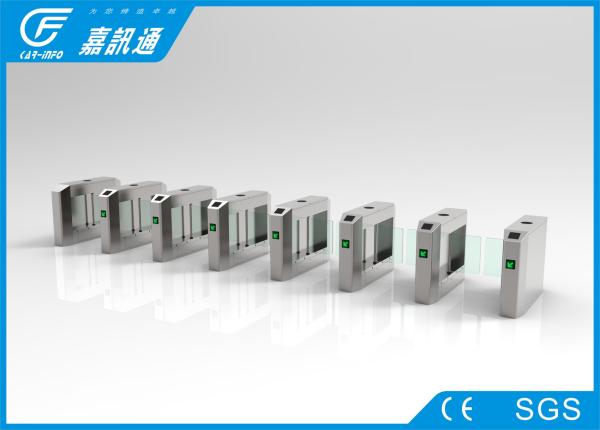

Direction Adjustable Waist Height Turnstile , Swing Barrier Gate Brcush DC Motor Images
