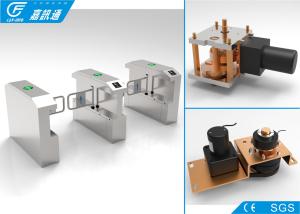

Automatic Stainless Speed Gate, DC Motor Speed Swing Barrier
Swing barrier description:
♦ Adopt Brush-less motor,it has longer lifespan.
♦ Non polar collision avoidance,it has strong resistance to destruction.
♦ Super ego protection, it is the preferred choice for non-motorized vehicle passageway.
♦ Cutting edge new ARM technology,which has better expand-ability and high cost performance.
♦ Merits for smooth running,speed adjustable and low wear.
♦ Adopt module structure design,it has easier operation and less maintenance.
♦ Lane size can be setting and has good anti-pinch performance to protect passengers.
Technical Parameters:
| Housing material | International standard 304SS,201/316SS |
| Dimensions | 1400L*280W*980H mm |
| Arm length | 300mm |
| Weight | 80kg |
| Arm rotation angle | 180 degree |
| Passing speed | 35-45 perople/minute |
| MCBF | 5million times |
| Input voltage | AC220±10% V,50HZ |
| Driving motor | DC 50W/24V |
| Working environment | Indoor and outdoor |
| Working temperature | -40℃—— 80℃ |
| Suitable humidity | 5%—— 90%
|
Standard Functions:
1. Equipped with standard card read window, can be connect with multi card-readdevice
2.With function of break down self check and alarm,easy maintenance and operation.
3. Swing turnstile can be connected with external button or remote control. achieved one or bi-direction passing at will
4. Auto reset function: If the passenger does not pass in given time, arms will lock automatically,delay time can be 3 s, 5 s, 10 s, 60 s..(given time can be set by operator).
5. Mechanical anti-trap:When people or objects hinder the arm running,the system will automatically detect and stop the run,swing arm strength of small, realize humanized protection.
6. Swing turnstile can realize a normally open or normally closed function switched by external button or remote control.
7. Lighting indicator :High brightness passing indication.
8. Normally open function:the swing turnstile arm will auto opening when power is off.the direction can be adjusted.
9. Sound and light alarm function, including illegal traffic, following, anti-trap etc.
Our advantage:
| High Automation Building Entrance Security Swing Barrier |
| 1. Professional solutions. |
| 2. Competitive and reasonable price |
| 3. Advanced technology |
| 4. High quality |
| 5. Fast delivery |
| 6. Best service |
| 7. High reputation of this industry |
| 8. Wonderful team |
| 9. The product have a wide range application |
| 10. Popular for foreign market |
| Automation Building Entrance Security Swing Barrier |
| 1. All items have 24 month quality guarantee. |
| 2. Custom design shape and logo, for large amount, custom logo available for free. |
| 3. Supported by professional engineers. |
| 4. Special discount of our distributors or agents in their area. |
| 5. Packing in standard export carton, suggest you pack it by wooden case to protect the products |
